Laser CutWood:Plastic:

K0 OhbotApp2

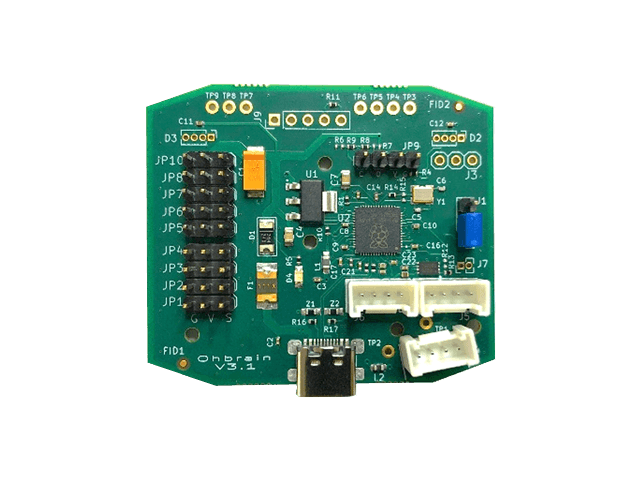

K1 Ohbrain

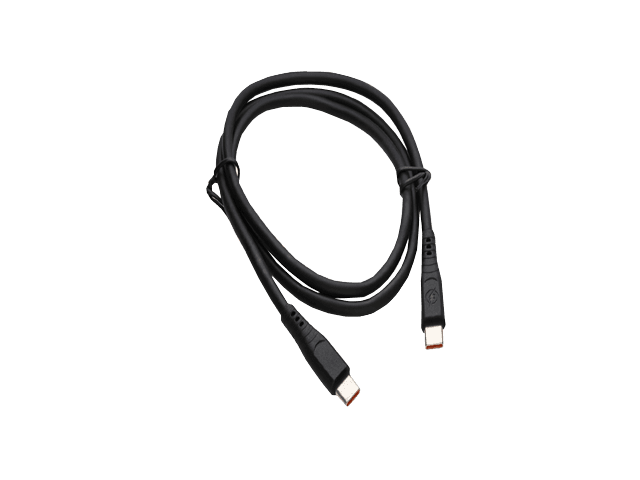

K2 USB-C to USB-C Cable

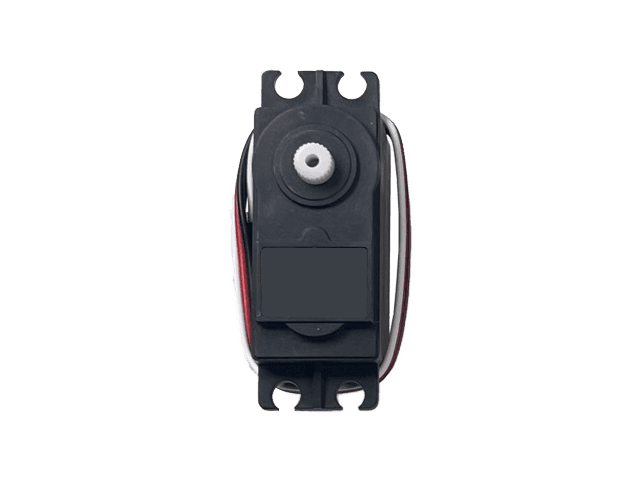

K3 Standard Servo

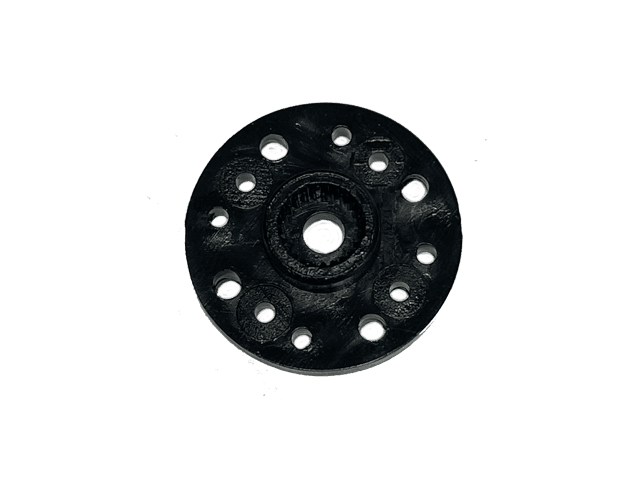

K4 Standard Servo Horn

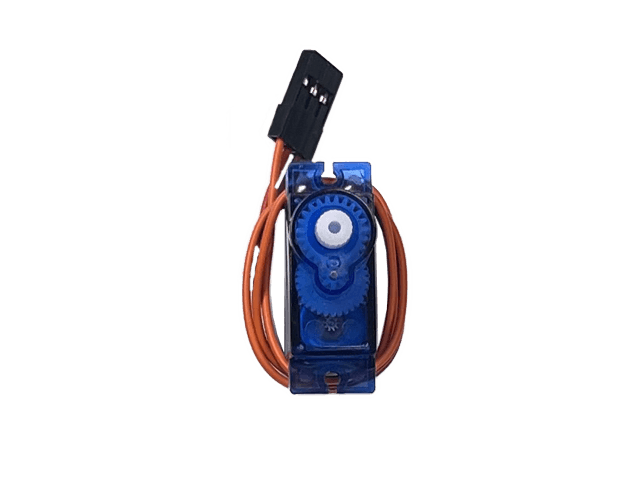

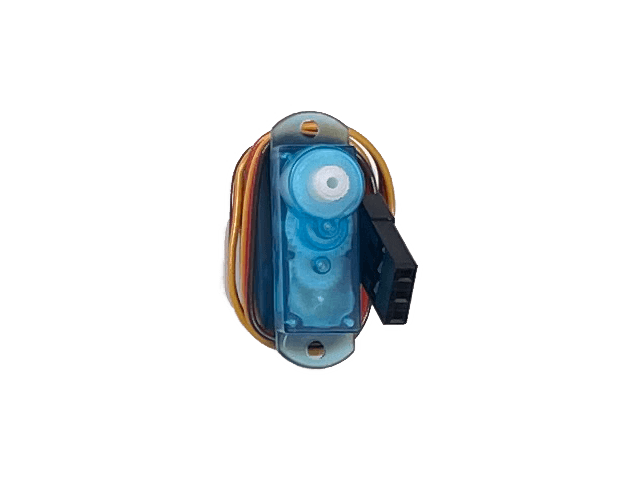

K5 Micro Servo

K6 Micro Servo Horn

K7 Nano Servo

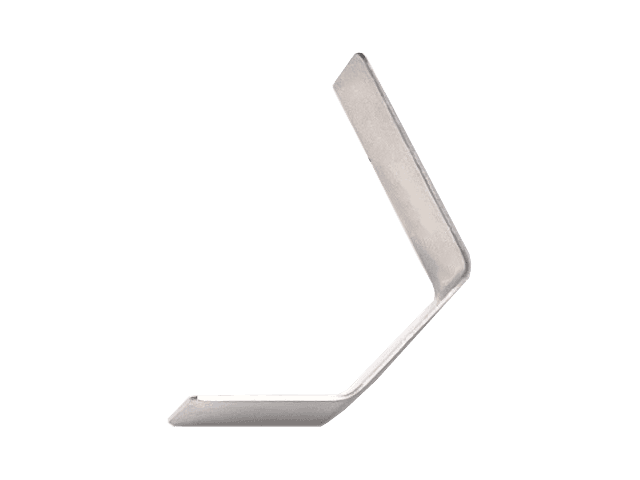

K8 Nano Servo Horn

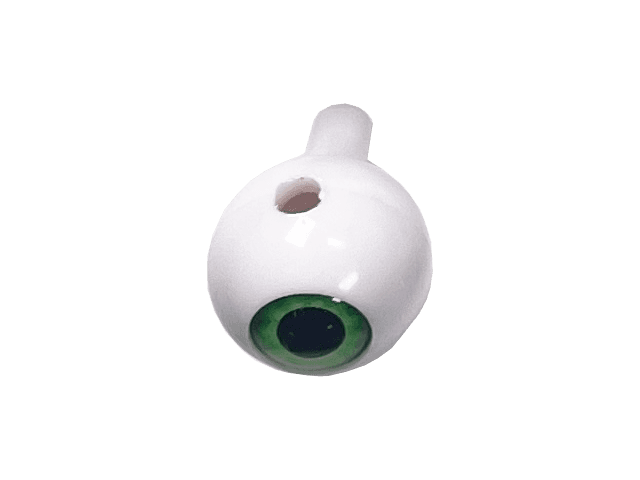

K9 Eyeball 1

K10 Eyeball 2

K11 Lip

K12 Nose

K13 Foot

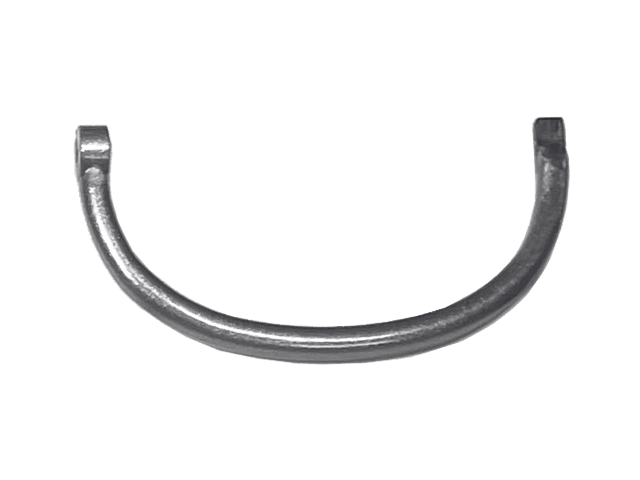

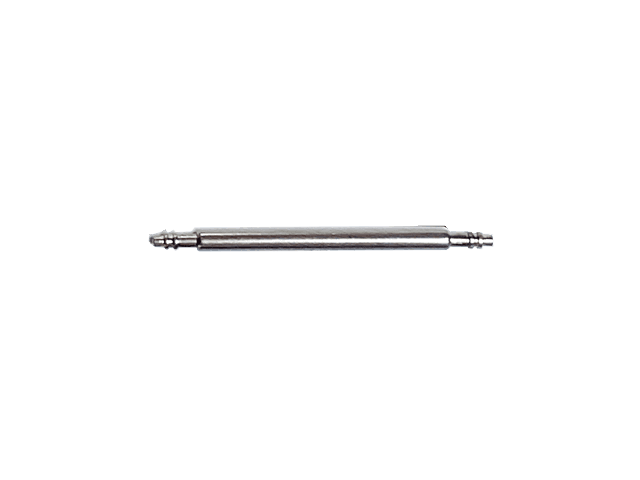

K14 Spring Bar

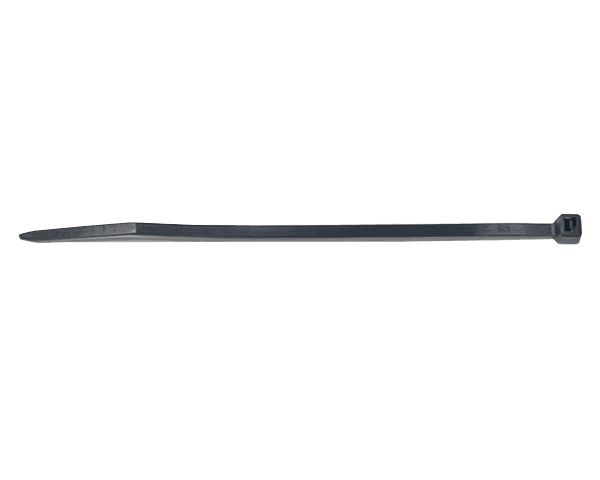

K15 Cable Tie

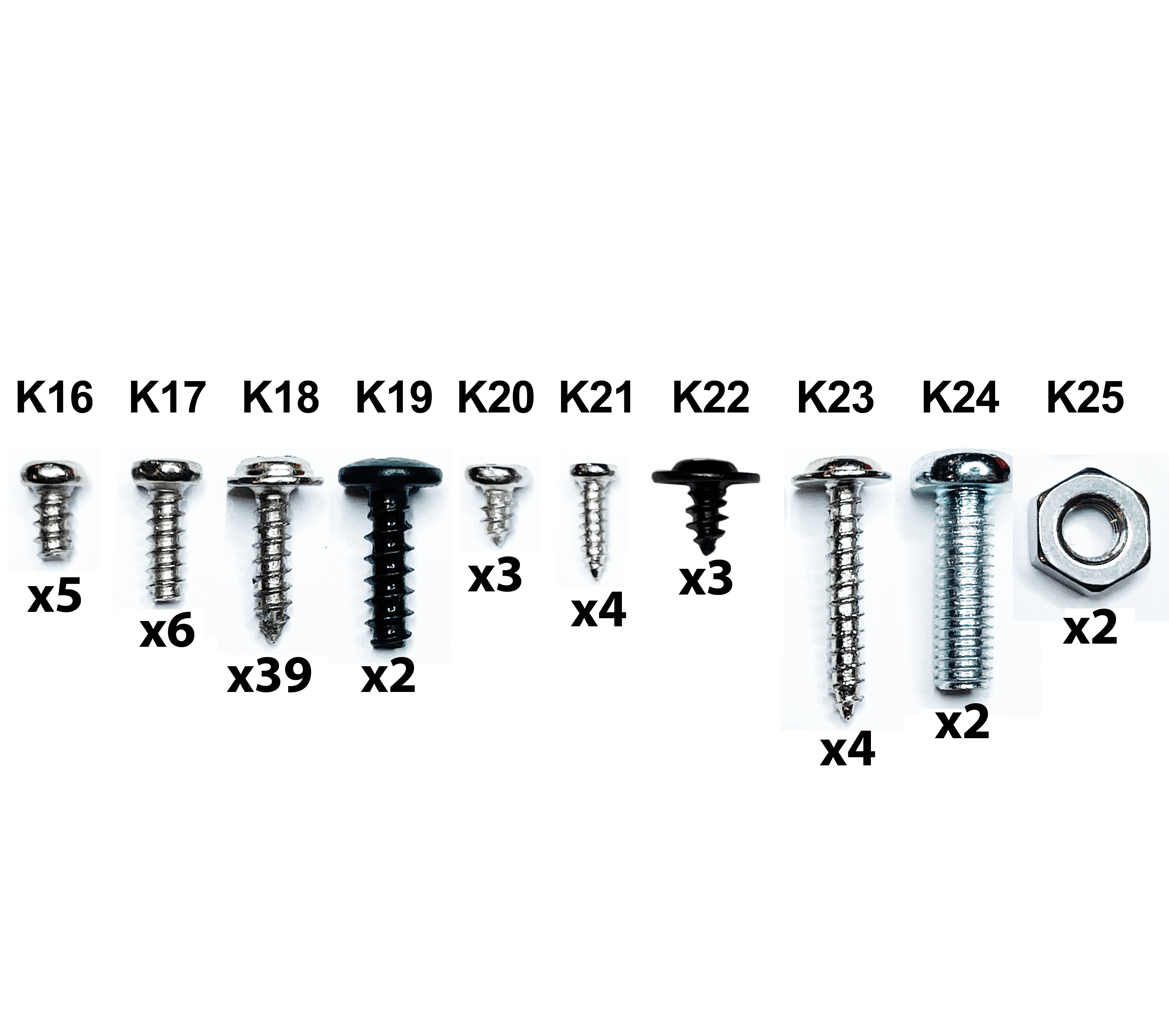

K16 to K25 Fixings

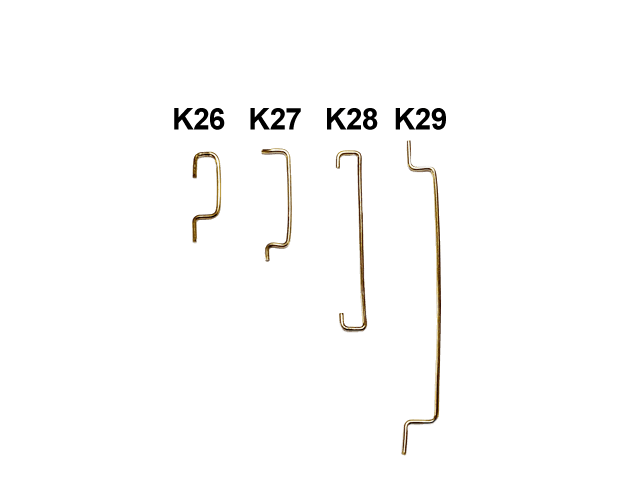

K26 to K29 Links

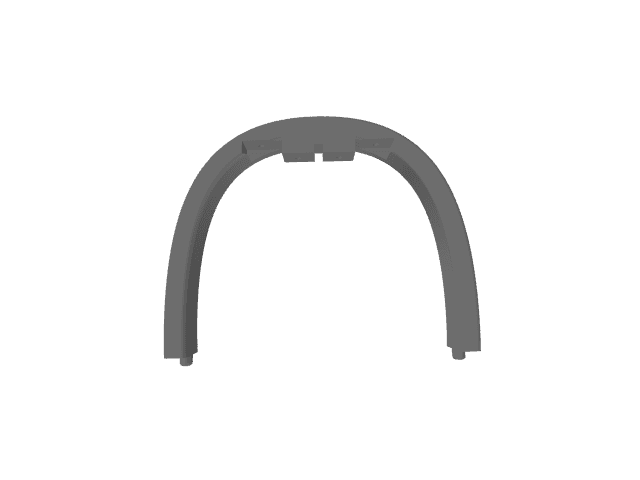

P1 Base Arch Front

Print time: 22 min

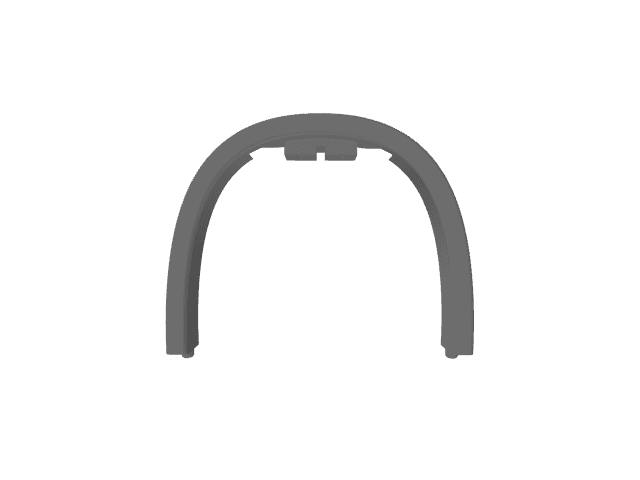

P2 Base Arch Back

Print time: 22 min

P3 Base Cross Support Left

Print time: 7 min

P4 Base Cross Support Right

Print time: 7 min

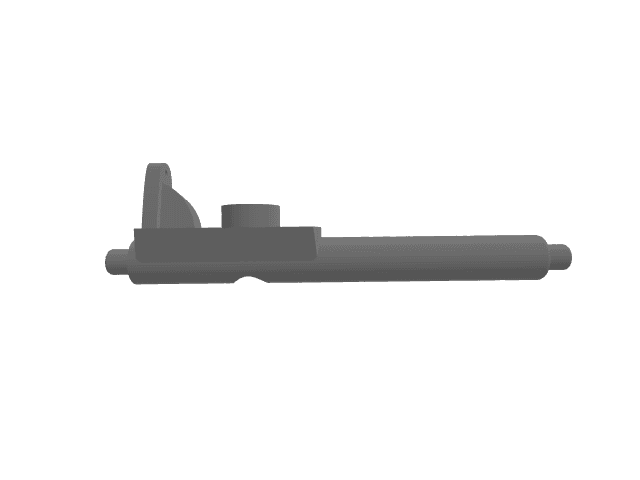

P5 Head Roll Pivot Bar

Print time: 17 min

P6 Head Tilt Servo Mount Upper

Print time: 16 min

P7 Head Tilt Servo Mount Lower

Print time: 9 min

P8 Head Eyetilt Servo Mount

Print time: 18 min

P9 Eyebox Frame

Print time: 47 min

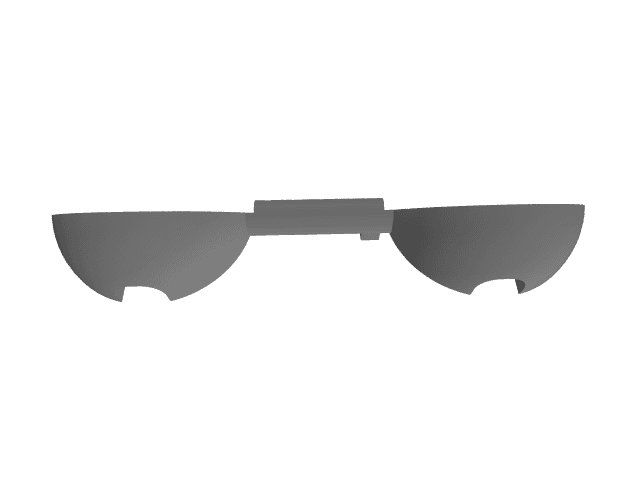

P10 Eyebox Lid Lower

Print time: 22 min

P11 Eyebox Lid Upper

Print time: 30 min

P12 Eyebox Lid Servo Arm

Print time: 3 min

P13 Base PCB Caddy

Print time: 7 min

P14 Base ServoPlug Clip

Print time: 13 min

P15 Cheek to Jaw Brace Right

Print time: 6 min

P16 Cheek to Jaw Brace Left

Print time: 6 min

P17 Neck Baseplate

Print time: 12 min

P18 Neck Servo Mount Lower

Print time: 5 min

P19 Neck Servo Mount Upper

Print time: 5 min

P20 Eye Eyeball Back

Print time: 14 min

P21 HeadRollNoseClip

Print time: 3 min

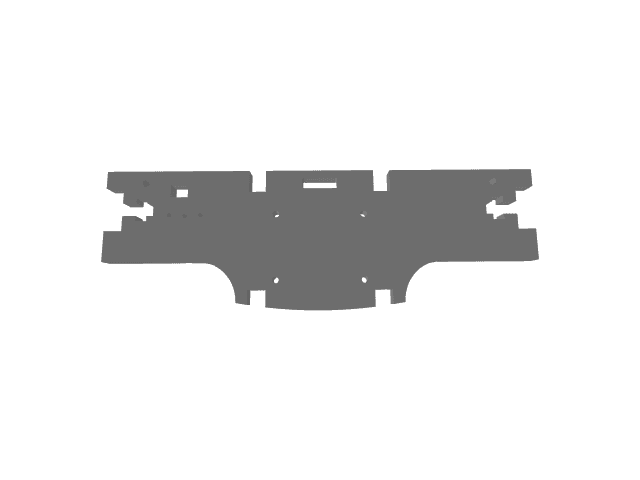

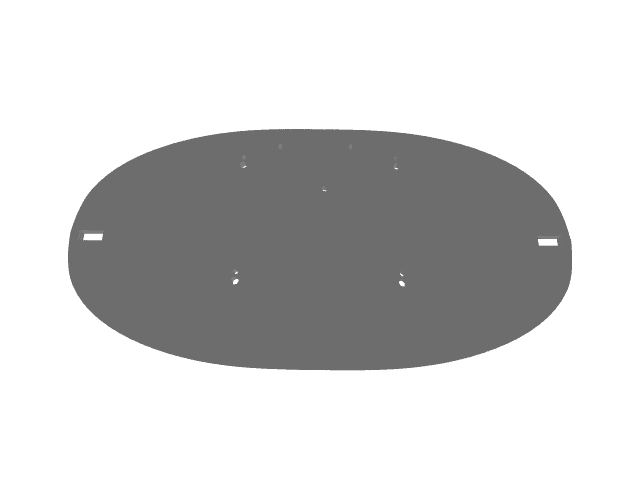

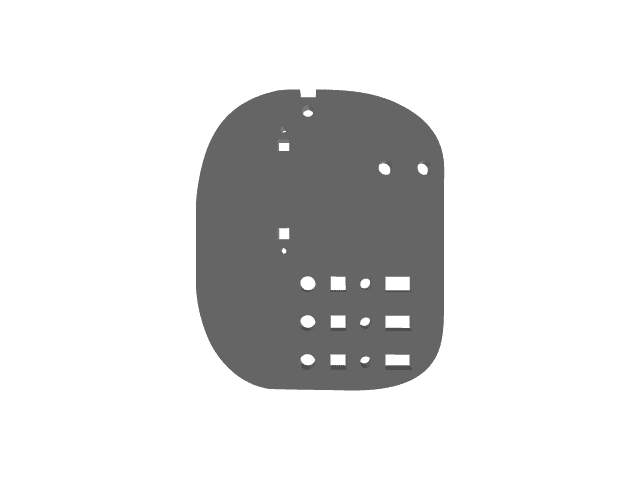

C1 Base

C2 Base Shoulder

C3 Neck Side

C4 Cheek

C5 Jaw

C6 Jaw Servo Mount

C7 Jaw Servo Mount Spacer

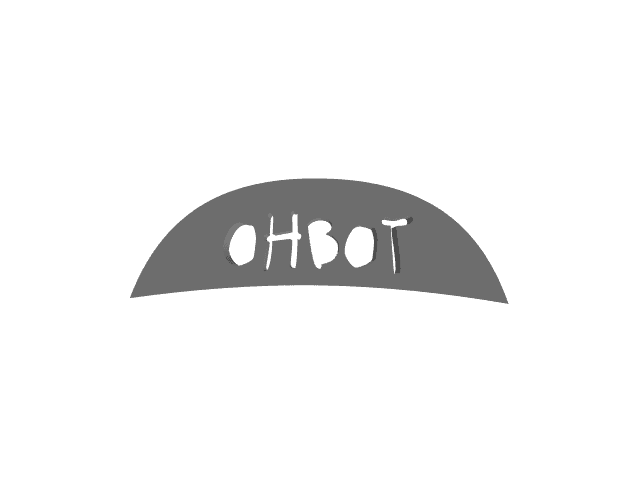

C8 Ohbot Badge
